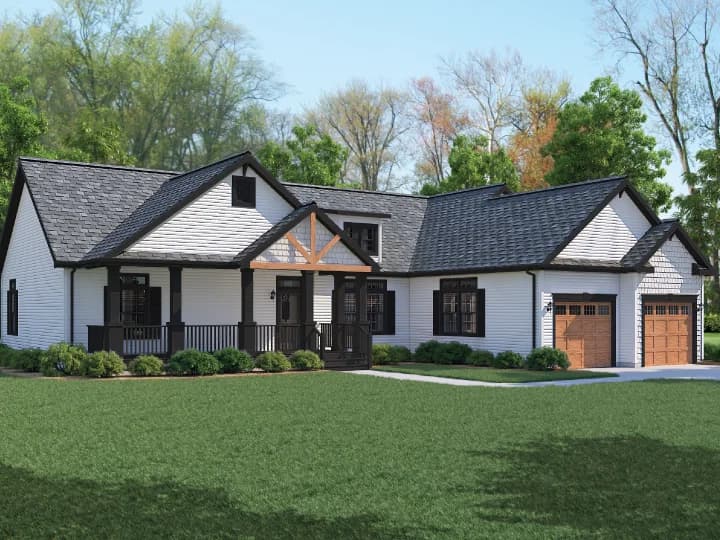

Ranch Homes series

Construction

• House Floor Width & Roof Standards
• Floor width 30', 28', 26' per print (increase length & width optional)
• Floor crawl space model (basement prep available)
• Roof truss 6/12, 24" oc (9/12, 16" oc available)
• Roof eave and rake 10"
• Roof sheeting 7/16"
• Roof sub fascia 2x6
• Roof attic access
• Ceiling drywall 5/8"
• Structural Standards
• Floor joist 2x10, 16" oc, #2 SPF or better
• Floor deck 3/4" tongue & groove, ring shank nails, HandiFoam
• Floor deck cut back at mate line
• Floor band joist doubled sidewall, mate line
• Ceiling 8' height throughout (9' available)
• Walls exterior 2x6, 16" oc, double top plate,
• 1/2" drywall
• Walls interior 2x4, 16" oc, 1/2" drywall
• Walls mate line 2x3, 16" oc, 1/2" drywall
• Walls exterior sheeted with 7/16" OSB side, end, and mate line

House Floor Width & Roof Standards
Floor width 30', 28', 26' per print (increase length & width optional)
Floor crawl space model (basement prep available)
Roof truss 6/12, 24" oc (9/12, 16" oc available)
Roof eave and rake 10"
Roof sheeting 7/16"
Roof sub fascia 2x6
Roof attic access
Ceiling drywall 5/8"
Structural Standards
Floor joist 2x10, 16" oc, #2 SPF or better
Floor deck 3/4" tongue & groove, ring shank nails, HandiFoam
Floor deck cut back at mate line
Floor band joist doubled sidewall, mate line
Ceiling 8' height throughout (9' available)
Walls exterior 2x6, 16" oc, double top plate,
1/2" drywall
Walls interior 2x4, 16" oc, 1/2" drywall
Walls mate line 2x3, 16" oc, 1/2" drywall
Walls exterior sheeted with 7/16" OSB side, end, and mate line

Mechanical

• Heating Standards
• Heat registers and boots
• Main duct and furnace not provided as standard
• Plumbing Standards
• 1/2" PEX supply lines stubbed through floor per code
• Air hammer arresters install washer, and DW, if applicable
• PVC drain lines stubbed through floor
• Shut-offs all exposed supply lines
• Freeze-proof faucet installed
• Delta single-lever faucets, vanity, tubs – lifetime warranty
• Delta gooseneck kitchen faucet sink – lifetime warranty
• Stainless steel double-bowl kitchen sink
• Gerber elongated commode and tank
• Vitreous-china lavs with overflows
• Fiberglass tub & shower/enclosures per print
• All network of plumbing not included under floor
• Electrical Standards
• 200-amp Siemens service panel 40/40
• Copper Romex 12-2 wire all general circuits
• Copper Romex wire other circuits sized accordingly
• Ground-fault protection per code

Exterior

• Exterior Finish, Window, Door & Insulation Standards
• Tyvek house wrap around entire house, gables included
• Ice-dam protection eaves
• R-21 paperback batt insulation all exterior walls
• R-38 blown attic insulation
• Vinyl 4x4 siding, prepped for sill plate fastening
• Vented vinyl soffit
• Aluminum fascia
• Owens Corning TruDefinition Duration shingles – limited lifetime warranty
• Andersen 100 single-hung windows (see options) grids between glass
• Andersen 100 casement window over kitchen sink per plan
• Tip-out sash, Low E2 Argon-filled glass
• 15" raised panel shutters all windows
• Therma-Tru fiberglass front door, peephole and knocker 3'0" x 6'8" with
• lever- action Schlage lockset, dead bolts keyed alike
• Therma-Tru steel rear door 20-minute fire rated, 2'8" x 6'8" with lever-action
• Schlage lockset, dead bolts keyed alike
• Caulking under all exterior walls

Exterior Finish, Window, Door & Insulation Standards

Interior

• Cabinet Standards
• Merillat Spring Valley Maple, stained, recessed panel per plan
• Soft-close doors & drawers, plywood construction full-extension drawer box
• 30" overhead wall cabinets, crown molding over all wall cabinets (36" & 42"
• available)
• Wall cabinets over washer and dryer per plan
• Lazy Susan in corner per plan
• Raised angle wall cabinet in corner per plan
• Raised pantry cabinet per plan
• Bank of drawers in base cabinets – bathrooms and kitchen
• Laminate counters with rolled edge and post-form backsplash
• Interior Door and Trim Standards
• White hollow core smooth painted interior doors (choose between 3 styles)
• 32" doors where applicable
• Colonial-style wood base and door casing painted white finish
• Mortised hinges all doors
• Lever-action passage and privacy locksets
• Colonial-style wood casing and jamb painted white finish all windows
• 2 1/4" mirror trim stained to match door/window trim color

Kitchen

• Microwave prep over range area
• No appliances standard

Microwave prep over range area
No appliances standard

Other

• One-year, 10-year structural as described on web page
• (ID102006)

One-year, 10-year structural as described on web page
(ID102006)
